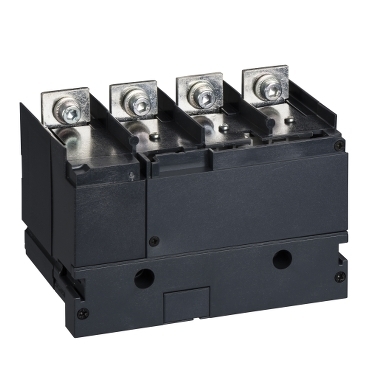

Przekładnik prądowy i napięciowy 125/5A CT do wyłącznika Compact NSX100/250 4P LV429462

This is a current transformer module with voltage measurement output for 4 poles Compact NSX 100/160/250. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The current rating is 125A and the operational voltage is 530 VAC 50/60 Hz. The module is installed directly on the downstream circuit breaker terminals. The current at the secondary winding is 5A. The power consumption accuracy is class 1 for 1.1VA. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.
