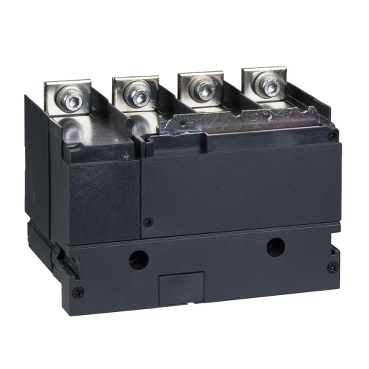

Przekładnik prądowy i napięciowy 400/5A CT do wyłącznika Compact NSX400/630 4P LV432654

This is a current transformer module with voltage measurement output for 4 poles Compact NSX 400/630. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The current rating is 400A and the operational voltage is 530 VAC 50/60 Hz. The module is installed directly on the downstream circuit breaker terminals. The current at the secondary winding is 5A. The power consumption accuracy is class 0.5 for 2VA. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.
