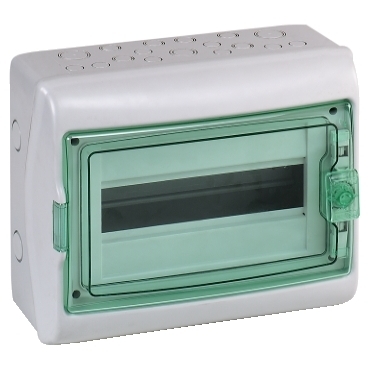

Rozdzielnica modułowa Kaedra IP65 1x12 13962
Obudowa natynkowa Kaedra IP65 KDR-1-12-NT-T drzwi transparentne 1 rząd 12 modułów/rząd
This Kaedra weatherproof versatile enclosure up to 12 modules in 1 row comes with reversible transparent cover. The dimensions of the box are (W) 340mm x (H) 280mm x (D) 160mm. The rated current is 63A, according to EN 60439-1 the complete insulation is Class 2. The degree of protection is IP65 and IK09. The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 60°C. It includes a terminal block support and 1 terminal block 4 x 10mm² and 4 x 16mm². Empty, this enclosure is compliant with IEC 60670. Equipped switchboards, this enclosure is compliant with IEC 60493-3. It comes with a set of hinges clipped between the bottom and the front plus a bracelet of wiring by row. It comes with protective caps, fixing screws Class 2 and with marking strips and label guards.
