Rozdzielnica modułowa Kaedra IP65 1x8 2 otwory 103x225mm 13161

Obudowa natynkowa Kaedra IP65 do podłączenia gniazd gKDR-1-8-NT-T/10 2 otwory 103x225mm

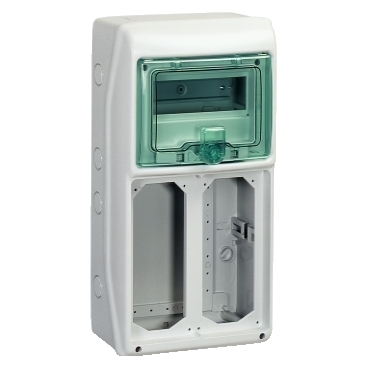

This Kaedra weatherproof enclosure is a surface mounted enclosure for plug and socket. It can accomodate all types of modular switchgear. There is a zone for industrial or domestic power outlets, buttons or indicator lights. The IP degree of protection is IP65. It is provided with a transparent green door for modular devices. The colour of enclosure is light grey (RAL 7035). It is intended for new or renovated installation in residential. The cables can enter by the top side of the enclosure via 3 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail, 2 plates for 65x85mm power outlets and 1 plate for push-button control. It comes with 1 terminal block. The terminal blocks have 4 outgoers (2x10mm²-2x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 15W. The In rated current is up to 63A. This product complies with IEC 61439-1 and 3, IEC 60670-1 and 24 standard. The dimensions are (W) 236mm x (H) 460mm x (D) 160mm. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 750°C as per IEC 60695-2-1. It is halogen free. The IK degree of protection is IK09. The operating temperature is -25-60 °C.
